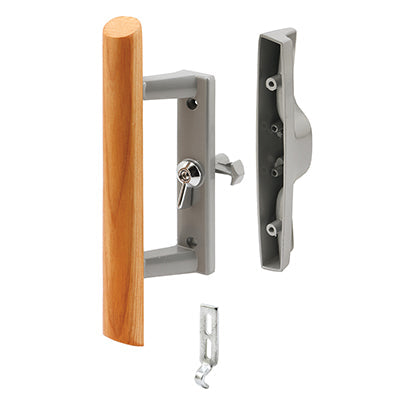

Prime Line Patio Door Internal style door handle, Gray, 3-15/16 inch hole centers, 1 per pkg. (3-15/16")

This handle is a gray Internal style latching patio door handle found on Viking as well as a variety of other sliding patio door manufacturers. Being one of the most common internal style latch it can be used on either right or left-handed doors. The handle body is diecast steel with a wood handle attached. The wood finish may vary slightly. Included is a matching outside handle and keeper. The mounting holes are 3-15/16 in. on center. When the latch is installed into the door frame through an inside access hole, the connected lever is held in place by a flat spring as it operates the latch up and down to engage the keeper.

Found on a majority of Viking sliding patio doors
3-15/16 in. on center mounting holes
Non-handed handle design for left or right handed doors
Diecast construction painted gray with wood handle (wood finish can vary)
Contains one slide bolt, and two different keepers
Mounting hardware included
A Phillips head screwdriver is required for installation
For further dimensional information, please see the line drawing
Specifications
